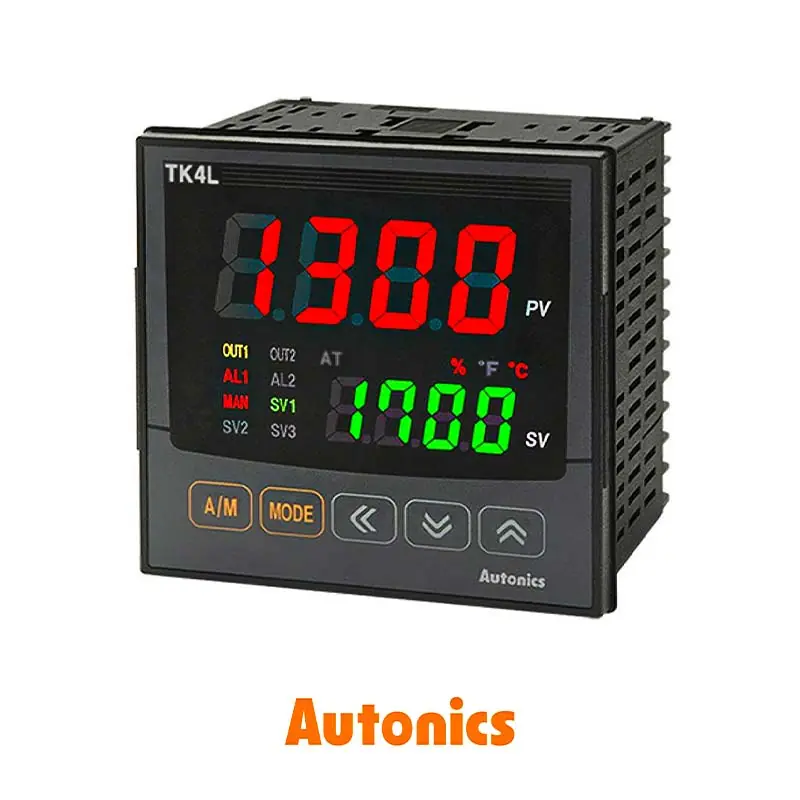

کنترلر دما آتونیکس سری TK

قیمت اصلی 65,000,000 ﷼ بود.قیمت فعلی 60,000,000 ﷼ است.

ابعاد

W48×H96 mm

W96×H48 mm

W96×H96 mm

خروجی 1

4 – 20 mA

SSR Output

Relay Output

خروجی 2

Relay Output

خروجی کمکی

RS485

4 – 20 mA

Alarm 1

Alarm 1 + Alarm 2

پاک کردن

چرا مشتریان به REXSENSE اعتماد می‌کنند؟

ضمانت اصالت کالا
امکان پرداخت امن و مطمئن
ارسال سریع به سراسر کشور
پشتیبانی فنی قبل و بعد از خرید

شناسه محصول: نامعلوم Category: کنترلر و نمایشگر برند: Autonics

دانلود دیتاشیت

🔔 یادآوری مهم برای مشتریان عزیز
به دلیل نوسانات نرخ ارز و تغییر لحظه‌ای موجودی انبار، لطفاً قبل از ثبت سفارش برای استعلام آخرین قیمت و موجودی با تیم فروش رکسنس (REXSENSE) تماس بگیرید.
📲 مشاوران ما آماده پاسخگویی سریع و تخصصی به شما هستند.

کنترلر دما آتونیکس سری TK با نرخ نمونه‌برداری سریع 50 ms، دقت نمایش ±0.3% و قابلیت کنترل همزمان گرمایش و سرمایش، انتخابی مطمئن برای کنترل دقیق دما در فرآیندهای صنعتی است.

معرفی کنترلر دما آتونیکس سری TK

کنترلر دما آتونیکس سری TK یک کنترلر دما با کارایی بالا و نرخ نمونه برداری 50 میلی ثانیه (Sampling Rate : 50 ms) با دقت نمایش (Display Accuracy : ± 0.3%) می باشد. کنترلر آتونیکس TK ، کنترل دما با دقت بالا را با ویژگی‌هایی مانند کنترل گرمایش و سرمایش همزمان (Heating and Cooling Control) و گزینه‌های کنترل اتوماتیک و دستی (Automatic/Manual Control) ارائه می‌دهد. کمپانی Autonics مدل TK را در ابعاد و اندازه‌های مختلف و با طیف گسترده ایی از انواع ورودی و خروجی های استاندارد ، به منظور کنترل دقیق و پایدار دما و سایر کیمیت ها در فرآیندهای مختلف صنعتی روانه بازار کرده است.

ویژگی‌ها و مزایا

نرخ نمونه‌برداری سریع Sampling Rate : 50 ms
دقت نمایش بالا Accuracy : ± 0.3%
قابلیت Heating/Cooling Control
پشتیبانی از کنترل Automatic/Manual
سازگار با انواع ورودی و خروجی استاندارد صنعتی

خدمات پس از فروش

تمامی محصولات Autonics اصل کره جنوبی، شامل سری TK، با گارانتی معتبر و خدمات پس از فروش رسمی توسط مجموعه REXSENSE پشتیبانی می‌شوند.

جدول مشخصات فنی

در این بخش، مشخصات فنی کامل و جزئیات عملکرد کنترلر دما آتونیکس سری TK قابل مشاهده است.

Autonics	برند
South Korea	کشور سازنده
TK Series	سری یا مدل
■ PID Controller ■ Process Controller ■ Temperature Controller	نوع کالا
No	(Attached Sensor) دارای سنسور متصل
■ RTD : DPt50Ω , DPt100Ω , JPt100Ω , Cu50Ω , Cu100Ω , Nikel 120Ω ■ Thermocouple (TC) : K , J , E , T , L , N , U , R , S , B , C , G , Platinel II ■ DC Current : 0 … 20 mA , 4 … 20 mA ■ DC Voltage : 0 … 10 V , 0 … 5 V , 1 … 5 V , 0 … 100 mV ■ Option Input : CT , Digital ⟡ For more details please refer to the Datasheet (Page H-20).	(Input Type) نوع ورودی
■ ON/OFF ■ P , PI , PD , PID	(Control Method) روش کنترل
■ Relay Output : OUT1 , OUT2 : 250VAC 3A 1a ■ SSR Output : 11 VDC ± 2V 20mA Max. ■ Current Output : DC 4 – 20 mA or DC 0 – 20mA selectable (load 500Ω Max.)	(Controller Output) خروجی کنترلی
■ Alarm Output : AL1, AL2 Relay: 250VAC 3A 1a ■ Option Output : Transmission : DC 4 – 20 mA (Load 500Ω Max, (Accuracy: ± 0.3 %FS) Communication : RS485 communication output (Modbus RTU)	(Auxiliary Output) خروجی کمکی
■ RS485 (Modbus RTU) ⟡ Allows parameter setting by USB port of PC (Communication converter is needed)	(Communication) رابط ارتباط
■ 24 VAC (50/60 Hz) , 24 … 48 VDC ■ 100 … 240 VAC (50/60 Hz)	(Power Supply) منبع تغذیه
■ RTD and Thermocouple Input : ⟡ At room temperature (23°C ± 5°C) : (PV ± 0.3% or ± 1°C, select the higher one) ± 1 digit⟡ Out of room temperature range : (PV ± 0.5% or ± 2°C, select the higher one) ± 1 digit⟡ In case of TK4SP Series, ± 1°C will be added. ■ Analog Input : ⟡ At room temperature (23°C ± 5°C) : ± 0.3 %FS ± 1 digit ⟡ Out of room temperature range : ± 0.5°C %FS ±1 digit ■ CT Input : ⟡ ± 5 %FS ±1 digit	(Display Accuracy) دقت نمایش
Sampling period : 50 ms	(Sampling Rate) نرخ نمونه برداری
■ Display Digits : 4-digit ■ Display Range : -1999 to 9999 ■ Display Details : ⟡ 7 Segment (PV: Red, SV: Green) ⟡ Other display part (Green, Red) LED	(Display) نمایشگر
-10 … +50 °C	(Ambient Temperature) دمای محیط
-20 … +60 °C	(Storage Temperature) دمای نگهداری
35 … 85 %RH	(Ambient Humidity) رطوبت محیط
35 … 85 %RH	(Storage Humidity) رطوبت نگهداری
Panel Mount	(Mounting) نحوه نصب
■ DIN W48×H24 mm → TK4N ■ DIN W48×H48 mm → TK4SP (11-pin plug type) ■ DIN W48×H48 mm → TK4S (Terminal block type) ■ DIN W72×H72 mm → TK4M ■ DIN W96×H48 mm → TK4W ■ DIN W48×H96 mm → TK4H ■ DIN W96×H96 mm → TK4L	(Dimensions) ابعاد
N/A	(Housing Material) جنس بدنه
■ IP65 (Front panel) ⟡ TK4SP: IP50 (Front panel)	(Ingress Protection) IP درجه حفاظت
Please refer to the Datasheet (at the end of Page H-20).	(Weight) وزن
■ CE / European Community ■ cURus (UL recognized) / USA and Canada	(Scope Approval) تاییدیه های منطقه ایی
Without	(Certificates and Approvals) سایر تاییدیه ها و گواهی نامه ها
■ Temperature monitoring ■ Pressure monitoring ■ Level monitoring ■ Volume monitoring ■ Flow monitoring	(Application) کاربرد

ابعاد	W48×H96 mm, W96×H48 mm, W96×H96 mm
خروجی 1	4 – 20 mA, SSR Output, Relay Output
خروجی 2	Relay Output
خروجی کمکی	RS485, 4 – 20 mA, Alarm 1, Alarm 1 + Alarm 2

محصولات پر فروش کنترلر دما آتونیکس سری TK

● برای مشاهده کامل اطلاعات ، جدول را به چپ راست بکشید.

Autonics – TK4L

Ordering Code	Dimension	Auxiliary Output	Power Supply	Control Output 1	Control Output 2
TK4L-12RN	DIN W96×H96 mm	Alarm 1	24 … 48 VDC 24 VAC (50/60Hz)	Relay Output	Relay Output (Heating or Cooling)
TK4L-14RN	DIN W96×H96 mm	Alarm 1	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating or Cooling)
TK4L-14RC	DIN W96×H96 mm	Alarm 1	100 … 240 VAC (50/60Hz)	Relay Output	Current Output or SSR Drive (Heating & Cooling)
TK4L-14SN	DIN W96×H96 mm	Alarm 1	100 … 240 VAC (50/60Hz)	SSR Drive	Relay Output (Heating or Cooling)
TK4L-14SR	DIN W96×H96 mm	Alarm 1	100 … 240 VAC (50/60Hz)	SSR Drive	Relay Output (Heating & Cooling)
TK4L-14CN	DIN W96×H96 mm	Alarm 1	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Relay Output (Heating or Cooling)
TK4L-14CR	DIN W96×H96 mm	Alarm 1	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Relay Output (Heating & Cooling)
TK4L-14CC	DIN W96×H96 mm	Alarm 1	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Current Output or SSR Drive (Heating & Cooling)
TK4L-22RN	DIN W96×H96 mm	Alarm 1 + Alarm 2	24 … 48 VDC 24 VAC (50/60Hz)	Relay Output	Relay Output (Heating or Cooling)
TK4L-22CN	DIN W96×H96 mm	Alarm 1 + Alarm 2	24 … 48 VDC 24 VAC (50/60Hz)	Current Output or SSR Drive	Relay Output (Heating or Cooling)
TK4L-24RN	DIN W96×H96 mm	Alarm 1 + Alarm 2	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating or Cooling)
TK4L-24RR	DIN W96×H96 mm	Alarm 1 + Alarm 2	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating & Cooling)
TK4L-24RC	DIN W96×H96 mm	Alarm 1 + Alarm 2	100 … 240 VAC (50/60Hz)	Relay Output	Current Output or SSR Drive (Heating & Cooling)
TK4L-24SR	DIN W96×H96 mm	Alarm 1 + Alarm 2	100 … 240 VAC (50/60Hz)	SSR Drive	Relay Output (Heating & Cooling)
TK4L-24CN	DIN W96×H96 mm	Alarm 1 + Alarm 2	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Relay Output (Heating or Cooling)
TK4L-24CR	DIN W96×H96 mm	Alarm 1 + Alarm 2	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Relay Output (Heating & Cooling)
TK4L-24CC	DIN W96×H96 mm	Alarm 1 + Alarm 2	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Current Output or SSR Drive (Heating & Cooling)
TK4L-R4CC	DIN W96×H96 mm	Alarm 1 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Current Output or SSR Drive (Heating & Cooling)
TK4L-R4CR	DIN W96×H96 mm	Alarm 1 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Relay Output (Heating & Cooling)
TK4LR4RC	DIN W96×H96 mm	Alarm 1 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	Relay Output	Current Output or SSR Drive (Heating & Cooling)
TK4L-R4RN	DIN W96×H96 mm	Alarm 1 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating or Cooling)
TK4L-R4SC	DIN W96×H96 mm	Alarm 1 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	SSR Drive	Current Output or SSR Drive (Heating & Cooling)
TK4L-R4SN	DIN W96×H96 mm	Alarm 1 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	SSR Drive	Relay Output (Heating or Cooling)
TK4L-R4SR	DIN W96×H96 mm	Alarm 1 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	SSR Drive	Relay Output (Heating & Cooling)
TK4L-T4RR	DIN W96×H96 mm	Alarm 1 + RS485	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating & Cooling)
TK4L-T4CN	DIN W96×H96 mm	Alarm 1 + RS485	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Relay Output (Heating or Cooling)
TK4L-A4RN	DIN W96×H96 mm	Alarm 1 + Alarm 2 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating or Cooling)
TK4L-A4RR	DIN W96×H96 mm	Alarm 1 + Alarm 2 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating & Cooling)
TK4L-A4RC	DIN W96×H96 mm	Alarm 1 + Alarm 2 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	Relay Output	Current Output or SSR Drive (Heating & Cooling)
TK4L-A4SN	DIN W96×H96 mm	Alarm 1 + Alarm 2 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	SSR Drive	Relay Output (Heating or Cooling)
TK4L-A4SR	DIN W96×H96 mm	Alarm 1 + Alarm 2 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	SSR Drive	Relay Output (Heating & Cooling)
TK4L-A4CN	DIN W96×H96 mm	Alarm 1 + Alarm 2 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Relay Output (Heating or Cooling)
TK4L-A4CC	DIN W96×H96 mm	Alarm 1 + Alarm 2 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Current Output or SSR Drive (Heating & Cooling)
TK4L-B4RR	DIN W96×H96 mm	Alarm 1 + Alarm 2 + RS485	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating & Cooling)
TK4L-B4CN	DIN W96×H96 mm	Alarm 1 + Alarm 2 + RS485	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Relay Output (Heating or Cooling)
TK4L-B4CR	DIN W96×H96 mm	Alarm 1 + Alarm 2 + RS485	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Relay Output (Heating & Cooling)

Autonics – TK4H

Ordering Code	Dimension	Auxiliary Output	Power Supply	Control Output 1	Control Output 2
TK4H-14SR	DIN W48×H96 mm	Alarm 1	100 … 240 VAC (50/60Hz)	SSR Drive	Relay Output (Heating & Cooling)
TK4H-14CR	DIN W48×H96 mm	Alarm 1	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Relay Output (Heating & Cooling)
TK4H-24RN	DIN W48×H96 mm	Alarm 1 + Alarm 2	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating or Cooling)
TK4H-24RR	DIN W48×H96 mm	Alarm 1 + Alarm 2	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating & Cooling)
TK4H-24SR	DIN W48×H96 mm	Alarm 1 + Alarm 2	100 … 240 VAC (50/60Hz)	SSR Drive	Relay Output (Heating & Cooling)
TK4H-24SC	DIN W48×H96 mm	Alarm 1 + Alarm 2	100 … 240 VAC (50/60Hz)	SSR Drive	Current Output or SSR Drive (Heating & Cooling)
TK4H-24CR	DIN W48×H96 mm	Alarm 1 + Alarm 2	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Relay Output (Heating & Cooling)
TK4H-R4RN	DIN W48×H96 mm	Alarm 1 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating or Cooling)
TK4H-R4RR	DIN W48×H96 mm	Alarm 1 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating & Cooling)
TK4H-R4CN	DIN W48×H96 mm	Alarm 1 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Relay Output (Heating or Cooling)
TK4H-R4CR	DIN W48×H96 mm	Alarm 1 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Relay Output (Heating & Cooling)
TK4H-R4CC	DIN W48×H96 mm	Alarm 1 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Current Output or SSR Drive (Heating & Cooling)
TK4H-A4RN	DIN W48×H96 mm	Alarm 1 + Alarm 2 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating or Cooling)
TK4H-A4CN	DIN W48×H96 mm	Alarm 1 + Alarm 2 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Relay Output (Heating or Cooling)
TK4H-B4SN	DIN W48×H96 mm	Alarm 1 + Alarm 2 + RS485	100 … 240 VAC (50/60Hz)	SSR Drive	Relay Output (Heating or Cooling)

Autonics – TK4W

Ordering Code	Dimension	Auxiliary Output	Power Supply	Control Output 1	Control Output 2
TK4W-14RN	DIN W96×H48 mm	Alarm 1	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating or Cooling)
TK4W-22RN	DIN W96×H48 mm	Alarm 1 + Alarm 2	24 … 48 VDC 24 VAC (50/60Hz)	Relay Output	Relay Output (Heating or Cooling)
TK4W-24RN	DIN W96×H48 mm	Alarm 1 + Alarm 2	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating or Cooling)
TK4W-24SN	DIN W96×H48 mm	Alarm 1 + Alarm 2	100 … 240 VAC (50/60Hz)	SSR Drive	Relay Output (Heating or Cooling)
TK4W-R4RN	DIN W96×H48 mm	Alarm 1 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating or Cooling)
TK4W-R4CN	DIN W96×H48 mm	Alarm 1 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Relay Output (Heating or Cooling)
TK4W-A4RN	DIN W96×H48 mm	Alarm 1 + Alarm 2 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating or Cooling)
TK4W-A4CN	DIN W96×H48 mm	Alarm 1 + Alarm 2 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Relay Output (Heating or Cooling)

Autonics – TK4M

Ordering Code	Dimension	Auxiliary Output	Power Supply	Control Output 1	Control Output 2
TK4M-14RN	DIN W72×H72 mm	Alarm 1	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating or Cooling)
TK4M-14RR	DIN W72×H72 mm	Alarm 1	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating & Cooling)
TK4M-14CN	DIN W72×H72 mm	Alarm 1	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Relay Output (Heating or Cooling)
TK4M-24RR	DIN W72×H72 mm	Alarm 1 + Alarm 2	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating & Cooling)
TK4M-24SC	DIN W72×H72 mm	Alarm 1 + Alarm 2	100 … 240 VAC (50/60Hz)	SSR Drive	Current Output or SSR Drive (Heating & Cooling)
TK4M-R4CN	DIN W72×H72 mm	Alarm 1 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Relay Output (Heating or Cooling)
TK4M-A4RN	DIN W72×H72 mm	Alarm 1 + Alarm 2 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating or Cooling)
TK4M-A4CN	DIN W72×H72 mm	Alarm 1 + Alarm 2 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Relay Output (Heating or Cooling)
TK4M-B4RN	DIN W72×H72 mm	Alarm 1 + Alarm 2 + RS485	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating or Cooling)
TK4M-B4RC	DIN W72×H72 mm	Alarm 1 + Alarm 2 + RS485	100 … 240 VAC (50/60Hz)	Relay Output	Current Output or SSR Drive (Heating & Cooling)

Autonics – TK4S

Ordering Code	Dimension	Auxiliary Output	Power Supply	Control Output 1	Control Output 2
TK4S-12RN	DIN W48×H48 mm	Alarm 1	24 … 48 VDC 24 VAC (50/60Hz)	Relay Output	Relay Output (Heating or Cooling)
TK4S-12RR	DIN W48×H48 mm	Alarm 1	24 … 48 VDC 24 VAC (50/60Hz)	Relay Output	Relay Output (Heating & Cooling)
TK4S-12CN	DIN W48×H48 mm	Alarm 1	24 … 48 VDC 24 VAC (50/60Hz)	Current Output or SSR Drive	Relay Output (Heating or Cooling)
TK4S-14RN	DIN W48×H48 mm	Alarm 1	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating or Cooling)
TK4S-14RR	DIN W48×H48 mm	Alarm 1	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating & Cooling)
TK4S-14RC	DIN W48×H48 mm	Alarm 1	100 … 240 VAC (50/60Hz)	Relay Output	Current Output or SSR Drive (Heating & Cooling)
TK4S-14SN	DIN W48×H48 mm	Alarm 1	100 … 240 VAC (50/60Hz)	SSR Drive	Relay Output (Heating or Cooling)
TK4S-14SR	DIN W48×H48 mm	Alarm 1	100 … 240 VAC (50/60Hz)	SSR Drive	Relay Output (Heating & Cooling)
TK4S-14CN	DIN W48×H48 mm	Alarm 1	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Relay Output (Heating or Cooling)
TK4S-24RN	DIN W48×H48 mm	Alarm 1 + Alarm 2	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating or Cooling)
TK4S-24RR	DIN W48×H48 mm	Alarm 1 + Alarm 2	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating & Cooling)
TK4S-24SN	DIN W48×H48 mm	Alarm 1 + Alarm 2	100 … 240 VAC (50/60Hz)	SSR Drive	Relay Output (Heating or Cooling)
TK4S-24CN	DIN W48×H48 mm	Alarm 1 + Alarm 2	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Relay Output (Heating or Cooling)
TK4S-R4RC	DIN W48×H48 mm	Alarm 1 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	Relay Output	Current Output or SSR Drive (Heating & Cooling)
TK4S-R4RN	DIN W48×H48 mm	Alarm 1 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating or Cooling)
TK4S-R4CC	DIN W48×H48 mm	Alarm 1 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Current Output or SSR Drive (Heating & Cooling)
TK4S-T2RN	DIN W48×H48 mm	Alarm 1 + RS485	24 … 48 VDC 24 VAC (50/60Hz)	Relay Output	Relay Output (Heating or Cooling)
TK4S-T4RN	DIN W48×H48 mm	Alarm 1 + RS485	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating or Cooling)
TK4S-T4CN	DIN W48×H48 mm	Alarm 1 + RS485	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Relay Output (Heating or Cooling)
TK4S-T4CR	DIN W48×H48 mm	Alarm 1 + RS485	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Relay Output (Heating & Cooling)
TK4S-A4RR	DIN W48×H48 mm	Alarm 1 + Alarm 2 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating & Cooling)
TK4S-A4RC	DIN W48×H48 mm	Alarm 1 + Alarm 2 + 4 … 20 mA	100 … 240 VAC (50/60Hz)	Relay Output	Current Output or SSR Drive (Heating & Cooling)
TK4S-B2RR	DIN W48×H48 mm	Alarm 1 + Alarm 2 + RS485	24 … 48 VDC 24 VAC (50/60Hz)	Relay Output	Relay Output (Heating & Cooling)
TK4S-B2CN	DIN W48×H48 mm	Alarm 1 + Alarm 2 + RS485	24 … 48 VDC 24 VAC (50/60Hz)	Current Output or SSR Drive	Relay Output (Heating or Cooling)
TK4S-B2CR	DIN W48×H48 mm	Alarm 1 + Alarm 2 + RS485	24 … 48 VDC 24 VAC (50/60Hz)	Current Output or SSR Drive	Relay Output (Heating & Cooling)
TK4S-B4RR	DIN W48×H48 mm	Alarm 1 + Alarm 2 + RS485	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating & Cooling)
TK4S-B4SN	DIN W48×H48 mm	Alarm 1 + Alarm 2 + RS485	100 … 240 VAC (50/60Hz)	SSR Drive	Relay Output (Heating or Cooling)
TK4S-B4CN	DIN W48×H48 mm	Alarm 1 + Alarm 2 + RS485	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Relay Output (Heating or Cooling)
TK4S-B4CC	DIN W48×H48 mm	Alarm 1 + Alarm 2 + RS485	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Current Output or SSR Drive (Heating & Cooling)

Autonics – TK4SP

Ordering Code	Dimension	Auxiliary Output	Power Supply	Control Output 1	Control Output 2
TK4SP-12RN	DIN W48×H48 mm	Alarm 1	24 … 48 VDC 24 VAC (50/60Hz)	Relay Output	Relay Output (Heating or Cooling)
TK4SP-14RN	DIN W48×H48 mm	Alarm 1	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating or Cooling)
TK4SP-14RR	DIN W48×H48 mm	Alarm 1	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating & Cooling)
TK4SP-14RC	DIN W48×H48 mm	Alarm 1	100 … 240 VAC (50/60Hz)	Relay Output	Current Output or SSR Drive (Heating & Cooling)
TK4SP-14SN	DIN W48×H48 mm	Alarm 1	100 … 240 VAC (50/60Hz)	SSR Drive	Relay Output (Heating or Cooling)
TK4SP-14SR	DIN W48×H48 mm	Alarm 1	100 … 240 VAC (50/60Hz)	SSR Drive	Relay Output (Heating & Cooling)
TK4SP-14SC	DIN W48×H48 mm	Alarm 1	100 … 240 VAC (50/60Hz)	SSR Drive	Current Output or SSR Drive (Heating & Cooling)
TK4SP-14CN	DIN W48×H48 mm	Alarm 1	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Relay Output (Heating or Cooling)
TK4SP-14CR	DIN W48×H48 mm	Alarm 1	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Relay Output (Heating & Cooling)
TK4SP-14CC	DIN W48×H48 mm	Alarm 1	100 … 240 VAC (50/60Hz)	Current Output or SSR Drive	Current Output or SSR Drive (Heating & Cooling)

Autonics – TK4N

Ordering Code	Dimension	Auxiliary Output	Power Supply	Control Output 1	Control Output 2
TK4N-14RR	DIN W48×H24 mm	Alarm 1	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating & Cooling)
TK4N-14RC	DIN W48×H24 mm	Alarm 1	100 … 240 VAC (50/60Hz)	Relay Output	Current Output or SSR Drive (Heating & Cooling)
TK4N-14SN	DIN W48×H24 mm	Alarm 1	100 … 240 VAC (50/60Hz)	SSR Drive	Relay Output (Heating or Cooling)
TK4N-14SR	DIN W48×H24 mm	Alarm 1	100 … 240 VAC (50/60Hz)	SSR Drive	Relay Output (Heating & Cooling)
TK4N-24RN	DIN W48×H24 mm	Alarm 1 + Alarm 2	100 … 240 VAC (50/60Hz)	Relay Output	Relay Output (Heating or Cooling)
TK4N-24SN	DIN W48×H24 mm	Alarm 1 + Alarm 2	100 … 240 VAC (50/60Hz)	SSR Drive	Relay Output (Heating or Cooling)
