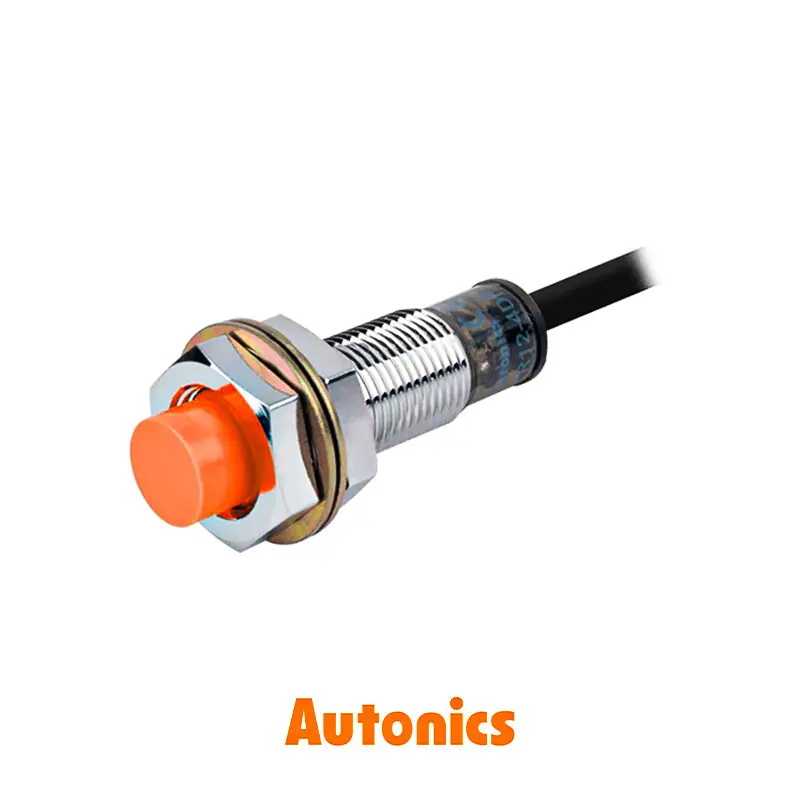

سنسور القایی آتونیکس سری PR مدل DC دو سیمه

15,500,000 ﷼

ابعاد

8 mm

12 mm

18 mm

30 mm

فاصله سنس

1.5 mm

2 mm

4 mm

5 mm

8 mm

10 mm

15 mm

نوع خروجی

Normally Open (NO)

Normally Closed (NC)

پاک کردن

چرا مشتریان به REXSENSE اعتماد می‌کنند؟

ضمانت اصالت کالا
امکان پرداخت امن و مطمئن
ارسال سریع به سراسر کشور
پشتیبانی فنی قبل و بعد از خرید

شناسه محصول: نامعلوم Category: سنسور القایی برند: Autonics

دانلود دیتاشیت

🔔 یادآوری مهم برای مشتریان عزیز
به دلیل نوسانات نرخ ارز و تغییر لحظه‌ای موجودی انبار، لطفاً قبل از ثبت سفارش برای استعلام آخرین قیمت و موجودی با تیم فروش رکسنس (REXSENSE) تماس بگیرید.
📲 مشاوران ما آماده پاسخگویی سریع و تخصصی به شما هستند.

سنسور القایی آتونیکس سری PR مدل DC دو سیمه با خروجی NO/NC ، طراحی ساده و عملکرد قابل اطمینان، انتخابی عالی برای کاربردهای صنعتی و خطوط تولید است.

معرفی سنسور القایی آتونیکس سری PR مدل DC دو سیمه

سنسور القایی آتونیکس سری PR مدل DC دو سیمه (DC 2-Wire) از سری سنسورهای غیرتماسی و بادوام Autonics است که برای تشخیص اجسام فلزی در محیط‌های صنعتی طراحی شده است. این مدل با مدار داخلی مقاوم در برابر ولتاژ معکوس و نویز، عملکردی پایدار و دقیق ارائه می‌دهد.

مدل‌های دو سیمه این سری با خروجی Normally Open (NO) یا Normally Closed (NC) عرضه می‌شوند و با طراحی ساده خود، امکان نصب سریع و ارتباط آسان با مدارهای DC را فراهم می‌کنند.

ویژگی‌ها و مزایا

خروجی قابل انتخاب NO یا NC برای کاربردهای متنوع
طراحی ساده و نصب سریع با دو سیم
مقاومت بالا در برابر شرایط محیطی و نویز
عملکرد پایدار در ولتاژهای DC
مناسب برای کنترل‌های صنعتی با فضا و سیم‌کشی محدود

کاربردهای صنعتی

تشخیص فلزات در خطوط تولید و تجهیزات اتوماسیون
کنترل موقعیت یا حضور قطعات فلزی
تشخیص سطح فلزات در فرآیندهای بسته‌بندی
استفاده در سیستم‌های هشدار و توقف اضطراری
کاربرد در ماشین‌آلات صنعتی با کنترل DC

خدمات پس از فروش و گارانتی

تمامی مدل‌های سنسور القایی آتونیکس سری PR مدل DC دو سیمه در فروشگاه REXSENSE اصل بوده و همراه با گارانتی معتبر و خدمات پس از فروش رسمی Autonics عرضه می‌شوند.

جدول مشخصات فنی

در جدول زیر می‌توانید ویژگی‌های فنی مدل‌های DC دو سیمه سری PR شامل محدوده ولتاژ، خروجی NO/NC ، فاصله سنس و ابعاد را مشاهده کنید.

Autonics	برند
South Korea	کشور سازنده
PR Series – DC 2-Wire	سری یا مدل
■ Inductive Proximity Sensor	نوع کالا
■ Cylindrical type	(Shape) شکل ظاهری
■ No mark → Standard type (PR) ■ A → Spatter resistance type (PRA) ■ D → Long sensing distance type (PRD)	(Feature) ویژگی
■ 8 mm ■ 12 mm ■ 18 mm ■ 30 mm	(Dimension) ابعاد یا قطر سنسور
Dimension → Sensing Distance → Setting Distance ■ 8 mm → 1.5 mm ± 10% → 0 to 1.05 mm ■ 8 mm → 2 mm ± 10% → 0 to 1.4 mm ■ 12 mm → 2 mm ± 10% → 0 to 1.4 mm ■ 12 mm → 4 mm ± 10% → 0 to 2.8 mm ■ 18 mm → 5 mm ± 10% → 0 to 3.5 mm ■ 18 mm → 8 mm ± 10% → 0 to 5.6 mm ■ 30 mm → 10 mm ± 10% → 0 to 7 mm ■ 30 mm → 15 mm ± 10% → 0 to 10.5 mm	(Sensing Distance) فاصله سنس
Max. 10% of sensing distance.	(Hysteresis) هیسترزیس
Dimension – Sensing Distance → Standard Sensing Target ■ 08 – 1.5 mm → 8×8×1 mm (Iron) ■ 08 – 2 mm→ 8×8×1 mm (Iron) ■ 12 -2 mm → 12×12×1 mm (Iron) ■ 12 – 4 mm → 12×12×1 mm (Iron) ■ 18 – 5 mm → 18×18×1 mm (Iron) ■ 18 – 8 mm → 25×25×1 mm (Iron) ■ 30 – 10 mm → 30×30×1 mm (Iron) ■ 30 – 15 mm → 45×45×1 mm (Iron)	(Standard Sensing Target) جسم هدف استاندارد
Max. ±10% for sensing distance at ambient temperature 20 °C within temperature range of -25 … +70 °C	(Affection by Temp) تاثیر دما
■ T → DC 2-wire type	(Wire) تعداد سیم
■ O → Normally Open (NO) ■ C → Normally Closed (NC)	(Output Type) نوع خروجی
■ D → 24 VDC (15 … 30 VDC)	(Power Supply) منبع تغذیه
2 … 50 mA	(Control Output) خروجی کنترلی
Max. 1.5 mA	(Leakage Current) جریان نشتی
Dimension → Sensing Distance → Response Frequency ■ 8 mm → 1.5 mm → 800 Hz ■ 8 mm → 2 mm → 800 Hz ■ 12 mm → 2 mm → 800 Hz ■ 12 mm → 4 mm → 400 Hz ■ 18 mm → 5 mm → 350 Hz ■ 18 mm → 8 mm → 200 Hz ■ 30 mm → 10 mm → 250 Hz ■ 30 mm → 15 mm → 100 Hz ⟡ The response frequency is the average value. The standard sensing target is used and the width is set as 2 times of the standard sensing target, 1/2 of the sensing distance for the distance.	(Response Frequency) پاسخ فرکانسی
Surge protection circuit, Overload & short circuit protection (Except for PRT08 Series)	(Protection Circuit) مدار محافظتی
Min. 50 MΩ (at 500VDC)	(Insulation Resistance) مقاومت عایق
1500 VAC 50/60Hz for 1 minute	(Dielectric Strength) مقاومت دی الکتریک
-25 … +70 °C (at non-freezing status)	(Ambient Temperature) دمای محیط
-30 … +80 °C (at non-freezing status)	(Storage Temperature) دمای نگهداری
35 … 95 %RH	(Ambient Humidity) رطوبت محیط
N/A	(Storage Humidity) رطوبت نگهداری
1 mm amplitude at frequency of 10 to 55 Hz in each of X, Y, Z directions for 2 hours	(Vibration) مقاومت در برابر لرزش
500 m/s² (50G) in X, Y, Z direction for 3 times.	(Shock) مقاومت در برابر شوک
■ No mark → Standard type (PR) ■ S → Short body (PRS) ■ L → Long body (PRL)	(Body Size) سایز بدنه
■ No mark → Cable type (PR) ■ CM → Connector type (PRCM) ⁽¹⁾ ■ W → Cable connector type (PRW) ⁽¹⁾ (1) : IEC standard item is available and add “-I” to the end of model.Cable : ⟡ Ø4 × 3P, 2m ⟡ Ø5 × 3P, 2m	(Electrical Connection) کانکشن الکتریکی
■ No mark → Standard type ■ I → IEC standard ■ V → Oil resistant cable ■ IV → Oil resistant cable (IEC standard)	(Standard Cable Material) جنس کابل
■ Case/Nut : Nickel plated Brass ■ Washer : Nickel plated Iron ■ Sensing Surface : PBT ■ Standard Cable (Black) : Polyvinyl chloride (PVC) ■ Oil Resistant Cable (Gray) : Oil resistant Polyvinyl chloride (PVC)	(Material) جنس اجزاء
IP67 (IEC standard)	(Ingress Protection) IP درجه حفاظت
Operation indicator (Red LED)	(Indicator) نشانگر
Please refer to the datasheet	(Weight) وزن
■ CE / European Community	(Scope Approval) تاییدیه های منطقه ایی
Without	(Certificates and Approvals) سایر تاییدیه ها و گواهی نامه ها
■ Position Detection on a Mechanical Moving Part ■ Gear Tooth Detection for Motion Monitoring ■ Valve Position Control during Processing ■ Foil Seal Detection Inside Plastic Caps ■ Can Position Detection on a Beverage Line	(Application) کاربرد

ابعاد	8 mm, 12 mm, 18 mm, 30 mm
فاصله سنس	1.5 mm, 2 mm, 4 mm, 5 mm, 8 mm, 10 mm, 15 mm
نوع خروجی	Normally Open (NO), Normally Closed (NC)

محصولات پر فروش سنسور القایی آتونیکس سری PR مدل DC 2-Wire

● برای مشاهده کامل اطلاعات ، جدول را به چپ راست بکشید.

Cable Type , Standard Size

Ordering Code	Feature	Connection	Body Size	Dimension	Sensing Distance	Response Frequency	Supply Voltage	Control Output
PRT08-1.5DO	Standard	Cable	Standard	8 mm	1.5 mm	800 Hz	24 VDC	Normally Open (NO)
PRT08-1.5DC	Standard	Cable	Standard	8 mm	1.5 mm	800 Hz	24 VDC	Normally Closed (NC)
PRT08-2DO	Standard	Cable	Standard	8 mm	2 mm	800 Hz	24 VDC	Normally Open (NO)
PRT08-2DC	Standard	Cable	Standard	8 mm	2 mm	800 Hz	24 VDC	Normally Closed (NC)
PRT12-2DO	Standard	Cable	Standard	12 mm	2 mm	800 Hz	24 VDC	Normally Open (NO)
PRT12-2DC	Standard	Cable	Standard	12 mm	2 mm	800 Hz	24 VDC	Normally Closed (NC)
PRT12-4DO	Standard	Cable	Standard	12 mm	4 mm	400 Hz	24 VDC	Normally Open (NO)
PRT12-4DC	Standard	Cable	Standard	12 mm	4 mm	400 Hz	24 VDC	Normally Closed (NC)
PRT18-5DO	Standard	Cable	Standard	18 mm	5 mm	350 Hz	24 VDC	Normally Open (NO)
PRT18-5DC	Standard	Cable	Standard	18 mm	5 mm	350 Hz	24 VDC	Normally Closed (NC)
PRT18-8DO	Standard	Cable	Standard	18 mm	8 mm	200 Hz	24 VDC	Normally Open (NO)
PRT18-8DC	Standard	Cable	Standard	18 mm	8 mm	200 Hz	24 VDC	Normally Closed (NC)
PRT30-10DO	Standard	Cable	Standard	30 mm	10 mm	250 Hz	24 VDC	Normally Open (NO)
PRT30-10DC	Standard	Cable	Standard	30 mm	10 mm	250 Hz	24 VDC	Normally Closed (NC)
PRT30-15DO	Standard	Cable	Standard	30 mm	15 mm	100 Hz	24 VDC	Normally Open (NO)
PRT30-15DC	Standard	Cable	Standard	30 mm	15 mm	100 Hz	24 VDC	Normally Closed (NC)

Long Sensing Distance Type

Ordering Code	Feature	Connection	Body Size	Dimension	Sensing Distance	Response Frequency	Supply Voltage	Control Output
PRDT12-4DO	Long sensing distance	Cable	Standard	12 mm	4 mm	450 Hz	12 … 24 VDC	Normally Open (NO)
PRDT12-4DC	Long sensing distance	Cable	Standard	12 mm	4 mm	450 Hz	12 … 24 VDC	Normally Closed (NC)
PRDT12-4DO-V	Long sensing distance	Cable	Standard	12 mm	4 mm	450 Hz	12 … 24 VDC	Normally Open (NO)
PRDT12-4DC-V	Long sensing distance	Cable	Standard	12 mm	4 mm	450 Hz	12 … 24 VDC	Normally Closed (NC)
PRDLT12-4DO	Long sensing distance	Cable	Long body	12 mm	4 mm	450 Hz	12 … 24 VDC	Normally Open (NO)
PRDLT12-4DC	Long sensing distance	Cable	Long body	12 mm	4 mm	450 Hz	12 … 24 VDC	Normally Closed (NC)
PRDLT12-4DO-V	Long sensing distance	Cable	Long body	12 mm	4 mm	450 Hz	12 … 24 VDC	Normally Open (NO)
PRDLT12-4DC-V	Long sensing distance	Cable	Long body	12 mm	4 mm	450 Hz	12 … 24 VDC	Normally Closed (NC)
PRDWT12-4DO	Long sensing distance	Cable connector	Standard	12 mm	4 mm	450 Hz	12 … 24 VDC	Normally Open (NO)
PRDWT12-4DC	Long sensing distance	Cable connector	Standard	12 mm	4 mm	450 Hz	12 … 24 VDC	Normally Closed (NC)
PRDWT12-4DO-I	Long sensing distance	Cable connector	Standard	12 mm	4 mm	450 Hz	12 … 24 VDC	Normally Open (NO)
PRDWT12-4DC-I	Long sensing distance	Cable connector	Standard	12 mm	4 mm	450 Hz	12 … 24 VDC	Normally Closed (NC)
PRDWT12-4DO-IV	Long sensing distance	Cable connector	Standard	12 mm	4 mm	450 Hz	12 … 24 VDC	Normally Open (NO)
PRDWT12-4DC-IV	Long sensing distance	Cable connector	Standard	12 mm	4 mm	450 Hz	12 … 24 VDC	Normally Closed (NC)
PRDT12-8DO	Long sensing distance	Cable	Standard	12 mm	8 mm	400 Hz	12 … 24 VDC	Normally Open (NO)
PRDT12-8DC	Long sensing distance	Cable	Standard	12 mm	8 mm	400 Hz	12 … 24 VDC	Normally Closed (NC)
PRDT12-8DO-V	Long sensing distance	Cable	Standard	12 mm	8 mm	400 Hz	12 … 24 VDC	Normally Open (NO)
PRDT12-8DC-V	Long sensing distance	Cable	Standard	12 mm	8 mm	400 Hz	12 … 24 VDC	Normally Closed (NC)
PRDLT12-8DO	Long sensing distance	Cable	Standard	12 mm	8 mm	400 Hz	12 … 24 VDC	Normally Open (NO)
PRDLT12-8DC	Long sensing distance	Cable	Long body	12 mm	8 mm	400 Hz	12 … 24 VDC	Normally Closed (NC)
PRDLT12-8DO-V	Long sensing distance	Cable	Long body	12 mm	8 mm	400 Hz	12 … 24 VDC	Normally Open (NO)
PRDLT12-8DC-V	Long sensing distance	Cable	Long body	12 mm	8 mm	400 Hz	12 … 24 VDC	Normally Closed (NC)
PRDWT12-8DO	Long sensing distance	Cable connector	Standard	12 mm	8 mm	400 Hz	12 … 24 VDC	Normally Open (NO)
PRDWT12-8DC	Long sensing distance	Cable connector	Standard	12 mm	8 mm	400 Hz	12 … 24 VDC	Normally Closed (NC)
PRDWT12-8DO-I	Long sensing distance	Cable connector	Standard	12 mm	8 mm	400 Hz	12 … 24 VDC	Normally Open (NO)
PRDWT12-8DC-I	Long sensing distance	Cable connector	Standard	12 mm	8 mm	400 Hz	12 … 24 VDC	Normally Closed (NC)
PRDWT12-8DO-IV	Long sensing distance	Cable connector	Standard	12 mm	8 mm	400 Hz	12 … 24 VDC	Normally Open (NO)
PRDWT12-8DC-IV	Long sensing distance	Cable connector	Standard	12 mm	8 mm	400 Hz	12 … 24 VDC	Normally Closed (NC)
PRDT18-7DO	Long sensing distance	Cable	Standard	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Open (NO)
PRDT18-7DC	Long sensing distance	Cable	Standard	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Closed (NC)
PRDT18-7DO-V	Long sensing distance	Cable	Standard	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Open (NO)
PRDT18-7DC-V	Long sensing distance	Cable	Standard	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Closed (NC)
PRDLT18-7DO	Long sensing distance	Cable	Long body	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Open (NO)
PRDLT18-7DC	Long sensing distance	Cable	Long body	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Closed (NC)
PRDLT18-7DO-V	Long sensing distance	Cable	Long body	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Open (NO)
PRDLT18-7DC-V	Long sensing distance	Cable	Long body	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Closed (NC)
PRDWT18-7DO	Long sensing distance	Cable connector	Standard	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Open (NO)
PRDWT18-7DC	Long sensing distance	Cable connector	Standard	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Closed (NC)
PRDWT18-7DO-I	Long sensing distance	Cable connector	Standard	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Open (NO)
PRDWT18-7DC-I	Long sensing distance	Cable connector	Standard	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Closed (NC)
PRDWT18-7DO-IV	Long sensing distance	Cable connector	Standard	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Open (NO)
PRDWT18-7DC-IV	Long sensing distance	Cable connector	Standard	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Closed (NC)
PRDWLT18-7DO-IV	Long sensing distance	Cable connector	Standard	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Open (NO)
PRDWLT18-7DC-IV	Long sensing distance	Cable connector	Standard	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Closed (NC)
PRDT18-14DO	Long sensing distance	Cable	Standard	18 mm	14 mm	200 Hz	12 … 24 VDC	Normally Open (NO)
PRDT18-14DC	Long sensing distance	Cable	Standard	18 mm	14 mm	200 Hz	12 … 24 VDC	Normally Closed (NC)
PRDT18-14DO-V	Long sensing distance	Cable	Standard	18 mm	14 mm	200 Hz	12 … 24 VDC	Normally Open (NO)
PRDT18-14DC-V	Long sensing distance	Cable	Standard	18 mm	14 mm	200 Hz	12 … 24 VDC	Normally Closed (NC)
PRDLT18-14DO	Long sensing distance	Cable	Long body	18 mm	14 mm	200 Hz	12 … 24 VDC	Normally Open (NO)
PRDLT18-14DC	Long sensing distance	Cable	Long body	18 mm	14 mm	200 Hz	12 … 24 VDC	Normally Closed (NC)
PRDLT18-14DO-V	Long sensing distance	Cable	Long body	18 mm	14 mm	200 Hz	12 … 24 VDC	Normally Open (NO)
PRDLT18-14DC-V	Long sensing distance	Cable	Long body	18 mm	14 mm	200 Hz	12 … 24 VDC	Normally Closed (NC)
PRDWT18-14DO	Long sensing distance	Cable connector	Standard	18 mm	14 mm	200 Hz	12 … 24 VDC	Normally Open (NO)
PRDWT18-14DC	Long sensing distance	Cable connector	Standard	18 mm	14 mm	200 Hz	12 … 24 VDC	Normally Closed (NC)
PRDWT18-14DO-I	Long sensing distance	Cable connector	Standard	18 mm	14 mm	200 Hz	12 … 24 VDC	Normally Open (NO)
PRDWT18-14DC-I	Long sensing distance	Cable connector	Standard	18 mm	14 mm	200 Hz	12 … 24 VDC	Normally Closed (NC)
PRDWT18-14DO-IV	Long sensing distance	Cable connector	Standard	18 mm	14 mm	200 Hz	12 … 24 VDC	Normally Open (NO)
PRDWT18-14DC-IV	Long sensing distance	Cable connector	Standard	18 mm	14 mm	200 Hz	12 … 24 VDC	Normally Closed (NC)
PRDWLT18-14DO-IV	Long sensing distance	Cable connector	Long body	18 mm	14 mm	200 Hz	12 … 24 VDC	Normally Open (NO)
PRDWLT18-14DC-IV	Long sensing distance	Cable connector	Long body	18 mm	14 mm	200 Hz	12 … 24 VDC	Normally Closed (NC)
PRDT30-15DO	Long sensing distance	Cable	Standard	30 mm	15 mm	100 Hz	12 … 24 VDC	Normally Open (NO)
PRDT30-15DC	Long sensing distance	Cable	Standard	30 mm	15 mm	100 Hz	12 … 24 VDC	Normally Closed (NC)
PRDT30-15DO-V	Long sensing distance	Cable	Standard	30 mm	15 mm	100 Hz	12 … 24 VDC	Normally Open (NO)
PRDT30-15DC-V	Long sensing distance	Cable	Standard	30 mm	15 mm	100 Hz	12 … 24 VDC	Normally Closed (NC)
PRDLT30-15DO	Long sensing distance	Cable	Long body	30 mm	15 mm	100 Hz	12 … 24 VDC	Normally Open (NO)
PRDLT30-15DC	Long sensing distance	Cable	Long body	30 mm	15 mm	100 Hz	12 … 24 VDC	Normally Closed (NC)
PRDLT30-15DO-V	Long sensing distance	Cable	Long body	30 mm	15 mm	100 Hz	12 … 24 VDC	Normally Open (NO)
PRDLT30-15DC-V	Long sensing distance	Cable	Long body	30 mm	15 mm	100 Hz	12 … 24 VDC	Normally Closed (NC)
PRDWT30-15DO	Long sensing distance	Cable	Standard	30 mm	15 mm	100 Hz	12 … 24 VDC	Normally Open (NO)
PRDWT30-15DC	Long sensing distance	Cable	Standard	30 mm	15 mm	100 Hz	12 … 24 VDC	Normally Closed (NC)
PRDWT30-15DO-I	Long sensing distance	Cable	Standard	30 mm	15 mm	100 Hz	12 … 24 VDC	Normally Open (NO)
PRDWT30-15DC-I	Long sensing distance	Cable	Standard	30 mm	15 mm	100 Hz	12 … 24 VDC	Normally Closed (NC)
PRDWT30-15DO-IV	Long sensing distance	Cable	Standard	30 mm	15 mm	100 Hz	12 … 24 VDC	Normally Open (NO)
PRDWT30-15DC-IV	Long sensing distance	Cable	Standard	30 mm	15 mm	100 Hz	12 … 24 VDC	Normally Closed (NC)
PRDT30-25DO	Long sensing distance	Cable	Standard	30 mm	25 mm	100 Hz	12 … 24 VDC	Normally Open (NO)
PRDT30-25DC	Long sensing distance	Cable	Standard	30 mm	25 mm	100 Hz	12 … 24 VDC	Normally Closed (NC)
PRDT30-25DO-V	Long sensing distance	Cable	Standard	30 mm	25 mm	100 Hz	12 … 24 VDC	Normally Open (NO)
PRDT30-25DC-V	Long sensing distance	Cable	Standard	30 mm	25 mm	100 Hz	12 … 24 VDC	Normally Closed (NC)
PRDLT30-25DO	Long sensing distance	Cable	Long body	30 mm	25 mm	100 Hz	12 … 24 VDC	Normally Open (NO)
PRDLT30-25DC	Long sensing distance	Cable	Long body	30 mm	25 mm	100 Hz	12 … 24 VDC	Normally Closed (NC)
PRDLT30-25DO-V	Long sensing distance	Cable	Long body	30 mm	25 mm	100 Hz	12 … 24 VDC	Normally Open (NO)
PRDLT30-25DC-V	Long sensing distance	Cable	Long body	30 mm	25 mm	100 Hz	12 … 24 VDC	Normally Closed (NC)
PRDWT30-25DO	Long sensing distance	Cable	Standard	30 mm	25 mm	100 Hz	12 … 24 VDC	Normally Open (NO)
PRDWT30-25DC	Long sensing distance	Cable	Standard	30 mm	25 mm	100 Hz	12 … 24 VDC	Normally Closed (NC)
PRDWT30-25DO-I	Long sensing distance	Cable	Standard	30 mm	25 mm	100 Hz	12 … 24 VDC	Normally Open (NO)
PRDWT30-25DC-I	Long sensing distance	Cable	Standard	30 mm	25 mm	100 Hz	12 … 24 VDC	Normally Closed (NC)
PRDWT30-25DO-IV	Long sensing distance	Cable	Standard	30 mm	25 mm	100 Hz	12 … 24 VDC	Normally Open (NO)
PRDWT30-25DC-IV	Long sensing distance	Cable	Standard	30 mm	25 mm	100 Hz	12 … 24 VDC	Normally Closed (NC)

Long Distance Connector Type

Ordering Code	Feature	Connection	Body Size	Dimension	Sensing Distance	Response Frequency	Supply Voltage	Control Output
PRDCMT08-2DO	Long sensing distance	Connector	Standard	8 mm	2 mm	600 Hz	12 … 24 VDC	Normally Open (NO)
PRDCMT08-2DC	Long sensing distance	Connector	Standard	8 mm	2 mm	600 Hz	12 … 24 VDC	Normally Closed (NC)
PRDCMT08-2DO-I	Long sensing distance	Connector	Standard	8 mm	2 mm	600 Hz	12 … 24 VDC	Normally Open (NO)
PRDCMT08-2DC-I	Long sensing distance	Connector	Standard	8 mm	2 mm	600 Hz	12 … 24 VDC	Normally Closed (NC)
PRDCMT08-4DO	Long sensing distance	Connector	Standard	8 mm	4 mm	500 Hz	12 … 24 VDC	Normally Open (NO)
PRDCMT08-4DC	Long sensing distance	Connector	Standard	8 mm	4 mm	500 Hz	12 … 24 VDC	Normally Closed (NC)
PRDCMT08-4DO-I	Long sensing distance	Connector	Standard	8 mm	4 mm	500 Hz	12 … 24 VDC	Normally Open (NO)
PRDCMT08-4DC-I	Long sensing distance	Connector	Standard	8 mm	4 mm	500 Hz	12 … 24 VDC	Normally Closed (NC)
PRDCMT12-4DO	Long sensing distance	Connector	Standard	12 mm	4 mm	450 Hz	12 … 24 VDC	Normally Open (NO)
PRDCMT12-4DC	Long sensing distance	Connector	Standard	12 mm	4 mm	450 Hz	12 … 24 VDC	Normally Closed (NC)
PRDCMT12-4DO-I	Long sensing distance	Connector	Standard	12 mm	4 mm	450 Hz	12 … 24 VDC	Normally Open (NO)
PRDCMT12-4DC-I	Long sensing distance	Connector	Long body	12 mm	4 mm	450 Hz	12 … 24 VDC	Normally Closed (NC)
PRDCMLT12-4DO	Long sensing distance	Connector	Long body	12 mm	4 mm	450 Hz	12 … 24 VDC	Normally Open (NO)
PRDCMLT12-4DC	Long sensing distance	Connector	Long body	12 mm	4 mm	450 Hz	12 … 24 VDC	Normally Closed (NC)
PRDCMLT12-4DO-I	Long sensing distance	Connector	Long body	12 mm	4 mm	450 Hz	12 … 24 VDC	Normally Open (NO)
PRDCMLT12-4DC-I	Long sensing distance	Connector	Long body	12 mm	4 mm	450 Hz	12 … 24 VDC	Normally Closed (NC)
PRDCMT12-8DO	Long sensing distance	Connector	Standard	12 mm	8 mm	400 Hz	12 … 24 VDC	Normally Open (NO)
PRDCMT12-8DC	Long sensing distance	Connector	Standard	12 mm	8 mm	400 Hz	12 … 24 VDC	Normally Closed (NC)
PRDCMT12-8DO-I	Long sensing distance	Connector	Standard	12 mm	8 mm	400 Hz	12 … 24 VDC	Normally Open (NO)
PRDCMT12-8DC-I	Long sensing distance	Connector	Standard	12 mm	8 mm	400 Hz	12 … 24 VDC	Normally Closed (NC)
PRDCMLT12-8DO	Long sensing distance	Connector	Long body	12 mm	8 mm	400 Hz	12 … 24 VDC	Normally Open (NO)
PRDCMLT12-8DC	Long sensing distance	Connector	Long body	12 mm	8 mm	400 Hz	12 … 24 VDC	Normally Closed (NC)
PRDCMLT12-8DO-I	Long sensing distance	Connector	Long body	12 mm	8 mm	400 Hz	12 … 24 VDC	Normally Open (NO)
PRDCMLT12-8DC-I	Long sensing distance	Connector	Long body	12 mm	8 mm	400 Hz	12 … 24 VDC	Normally Closed (NC)
PRDCMT18-7DO	Long sensing distance	Connector	Standard	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Open (NO)
PRDCMT18-7DC	Long sensing distance	Connector	Standard	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Closed (NC)
PRDCMT18-7DO-I	Long sensing distance	Connector	Standard	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Open (NO)
PRDCMT18-7DC-I	Long sensing distance	Connector	Standard	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Closed (NC)
PRDCMLT18-7DO	Long sensing distance	Connector	Long body	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Open (NO)
PRDCMLT18-7DC	Long sensing distance	Connector	Long body	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Closed (NC)
PRDCMLT18-7DO-I	Long sensing distance	Connector	Long body	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Open (NO)
PRDCMLT18-7DC-I	Long sensing distance	Connector	Long body	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Closed (NC)
PRDCMT18-14DO	Long sensing distance	Connector	Standard	18 mm	14 mm	200 Hz	12 … 24 VDC	Normally Open (NO)
PRDCMT18-14DC	Long sensing distance	Connector	Standard	18 mm	14 mm	200 Hz	12 … 24 VDC	Normally Closed (NC)
PRDCMT18-14DO-I	Long sensing distance	Connector	Standard	18 mm	14 mm	200 Hz	12 … 24 VDC	Normally Open (NO)
PRDCMT18-14DC-I	Long sensing distance	Connector	Standard	18 mm	14 mm	200 Hz	12 … 24 VDC	Normally Closed (NC)
PRDCMLT18-14DO	Long sensing distance	Connector	Long body	18 mm	14 mm	200 Hz	12 … 24 VDC	Normally Open (NO)
PRDCMLT18-14DC	Long sensing distance	Connector	Long body	18 mm	14 mm	200 Hz	12 … 24 VDC	Normally Closed (NC)
PRDCMLT18-14DO-I	Long sensing distance	Connector	Long body	18 mm	14 mm	200 Hz	12 … 24 VDC	Normally Open (NO)
PRDCMLT18-14DC-I	Long sensing distance	Connector	Long body	18 mm	14 mm	200 Hz	12 … 24 VDC	Normally Closed (NC)
PRDCMT30-15DO	Long sensing distance	Connector	Standard	30 mm	15 mm	200 Hz	12 … 24 VDC	Normally Open (NO)
PRDCMT30-15DC	Long sensing distance	Connector	Standard	30 mm	15 mm	200 Hz	12 … 24 VDC	Normally Closed (NC)
PRDCMT30-15DO-I	Long sensing distance	Connector	Standard	30 mm	15 mm	200 Hz	12 … 24 VDC	Normally Open (NO)
PRDCMT30-15DC-I	Long sensing distance	Connector	Standard	30 mm	15 mm	200 Hz	12 … 24 VDC	Normally Closed (NC)
PRDCMLT30-15DO	Long sensing distance	Connector	Long body	30 mm	15 mm	200 Hz	12 … 24 VDC	Normally Open (NO)
PRDCMLT30-15DC	Long sensing distance	Connector	Long body	30 mm	15 mm	200 Hz	12 … 24 VDC	Normally Closed (NC)
PRDCMLT30-15DO-I	Long sensing distance	Connector	Long body	30 mm	15 mm	200 Hz	12 … 24 VDC	Normally Open (NO)
PRDCMLT30-15DC-I	Long sensing distance	Connector	Long body	30 mm	15 mm	200 Hz	12 … 24 VDC	Normally Closed (NC)
PRDCMT30-25DO	Long sensing distance	Connector	Standard	30 mm	25 mm	100 Hz	12 … 24 VDC	Normally Open (NO)
PRDCMT30-25DC	Long sensing distance	Connector	Standard	30 mm	25 mm	100 Hz	12 … 24 VDC	Normally Closed (NC)
PRDCMT30-25DO-I	Long sensing distance	Connector	Standard	30 mm	25 mm	100 Hz	12 … 24 VDC	Normally Open (NO)
PRDCMT30-25DC-I	Long sensing distance	Connector	Standard	30 mm	25 mm	100 Hz	12 … 24 VDC	Normally Closed (NC)
PRDCMLT30-25DO	Long sensing distance	Connector	Long body	30 mm	25 mm	100 Hz	12 … 24 VDC	Normally Open (NO)
PRDCMLT30-25DC	Long sensing distance	Connector	Long body	30 mm	25 mm	100 Hz	12 … 24 VDC	Normally Closed (NC)
PRDCMLT30-25DO-I	Long sensing distance	Connector	Long body	30 mm	25 mm	100 Hz	12 … 24 VDC	Normally Open (NO)
PRDCMLT30-25DC-	Long sensing distance	Connector	Long body	30 mm	25 mm	100 Hz	12 … 24 VDC	Normally Closed (NC)

Long Distance , Spatter Resistance Type

Ordering Code	Feature	Connection	Body Size	Dimension	Sensing Distance	Response Frequency	Supply Voltage	Control Output
PRDAT18-7DO	Long distance, Spatter resistance	Cable	Standard	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Open (NO)
PRDAT18-7DC	Long distance, Spatter resistance	Cable	Standard	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Closed (NC)
PRDAT18-7DO-V	Long distance, Spatter resistance	Cable	Standard	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Open (NO)
PRDAT18-7DC-V	Long distance, Spatter resistance	Cable	Standard	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Closed (NC)
PRDAWT18-7DO	Long distance, Spatter resistance	Cable connector	Standard	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Open (NO)
PRDAWT18-7DC	Long distance, Spatter resistance	Cable connector	Standard	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Closed (NC)
PRDAWT18-7DO-I	Long distance, Spatter resistance	Cable connector	Standard	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Open (NO)
PRDAWT18-7DC-I	Long distance, Spatter resistance	Cable connector	Standard	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Closed (NC)
PRDAWT18-7DO-IV	Long distance, Spatter resistance	Cable connector	Standard	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Open (NO)
PRDAWT18-7DC-IV	Long distance, Spatter resistance	Cable connector	Standard	18 mm	7 mm	250 Hz	12 … 24 VDC	Normally Closed (NC)
PRDAT30-15DO	Long distance, Spatter resistance	Cable	Standard	30 mm	15 mm	100 Hz	12 … 24 VDC	Normally Open (NO)
PRDAT30-15DC	Long distance, Spatter resistance	Cable	Standard	30 mm	15 mm	100 Hz	12 … 24 VDC	Normally Closed (NC)
PRDAT30-15DO-V	Long distance, Spatter resistance	Cable	Standard	30 mm	15 mm	100 Hz	12 … 24 VDC	Normally Open (NO)
PRDAT30-15DC-V	Long distance, Spatter resistance	Cable	Standard	30 mm	15 mm	100 Hz	12 … 24 VDC	Normally Closed (NC)
PRDAWT30-15DO	Long distance, Spatter resistance	Cable connector	Standard	30 mm	15 mm	100 Hz	12 … 24 VDC	Normally Open (NO)
PRDAWT30-15DC	Long distance, Spatter resistance	Cable connector	Standard	30 mm	15 mm	100 Hz	12 … 24 VDC	Normally Closed (NC)
PRDAWT30-15DO-I	Long distance, Spatter resistance	Cable connector	Standard	30 mm	15 mm	100 Hz	12 … 24 VDC	Normally Open (NO)
PRDAWT30-15DC-I	Long distance, Spatter resistance	Cable connector	Standard	30 mm	15 mm	100 Hz	12 … 24 VDC	Normally Closed (NC)
PRDAWT30-15DO-IV	Long distance, Spatter resistance	Cable connector	Standard	30 mm	15 mm	100 Hz	12 … 24 VDC	Normally Open (NO)
PRDAWT30-15DC-IV	Long distance, Spatter resistance	Cable connector	Standard	30 mm	15 mm	100 Hz	12 … 24 VDC	Normally Closed (NC)

نقد و بررسی‌ها

هنوز بررسی‌ای ثبت نشده است.

اولین کسی باشید که دیدگاهی می نویسد “سنسور القایی آتونیکس سری PR مدل DC دو سیمه” لغو پاسخ
